Joranalogue Audio Design

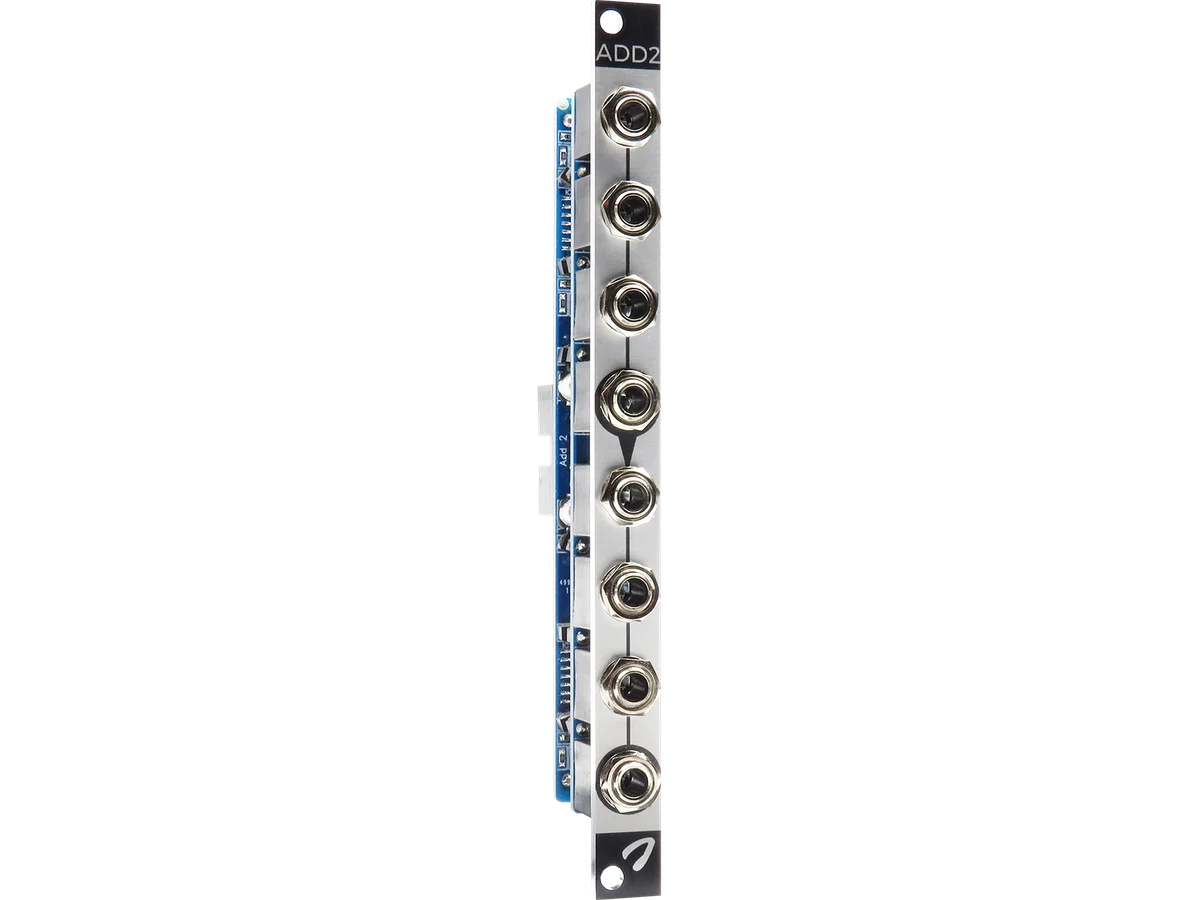

PRECISION ADDER/AVERAGER 2 HP | +12: 20 mA, −12: 20 mA | JORA2 ModularGrid Available exclusively through our authorised dealer network . To any new modular system owner, the need to easily combine different voltage sources quickly becomes apparent.

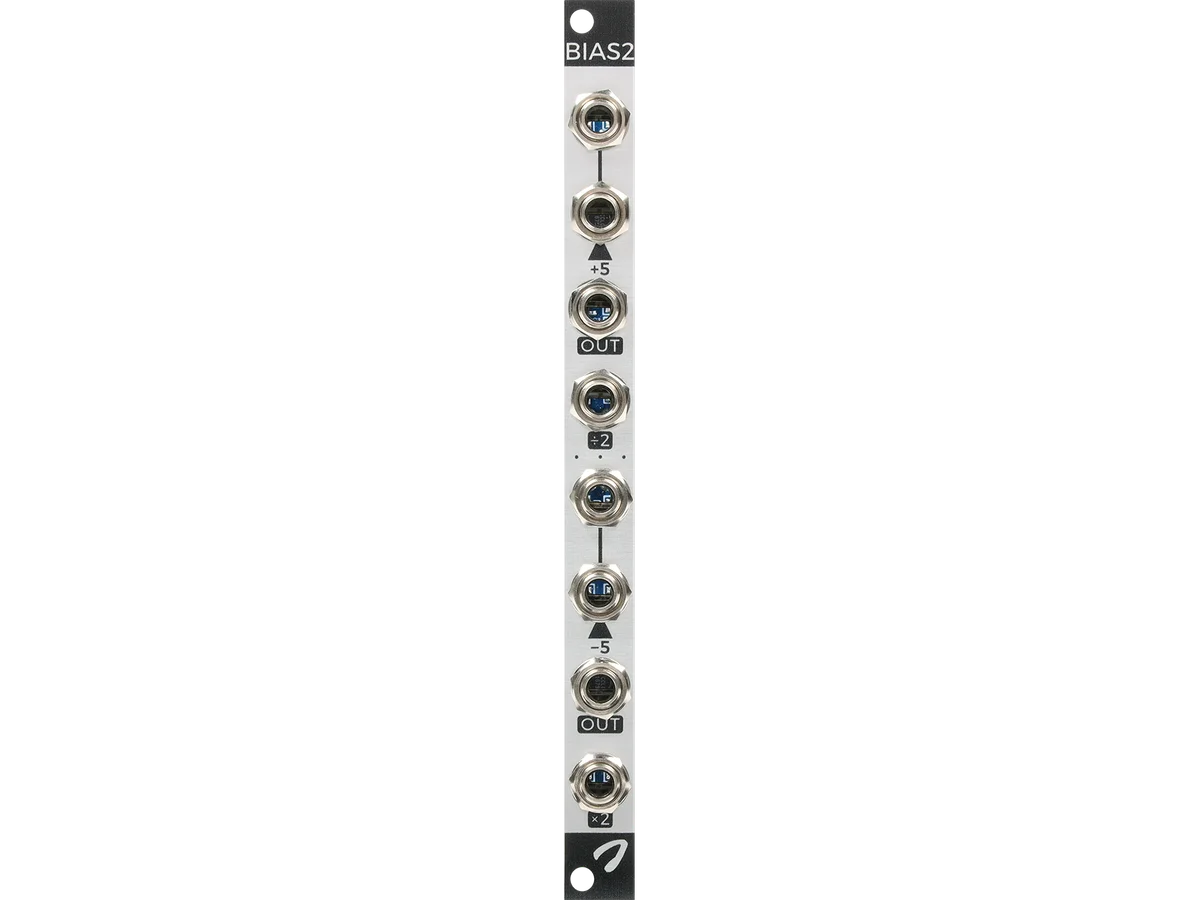

PRECISION SCALER/OFFSETTER 2 HP | +12: 20 mA, −12: 20 mA | JORB2 ModularGrid Available exclusively through our authorised dealer network . Voltage control is the basic tenet of modular synthesis: parameters may be modulated by changing control voltages (CVs), simply by plugging in a patch cable.

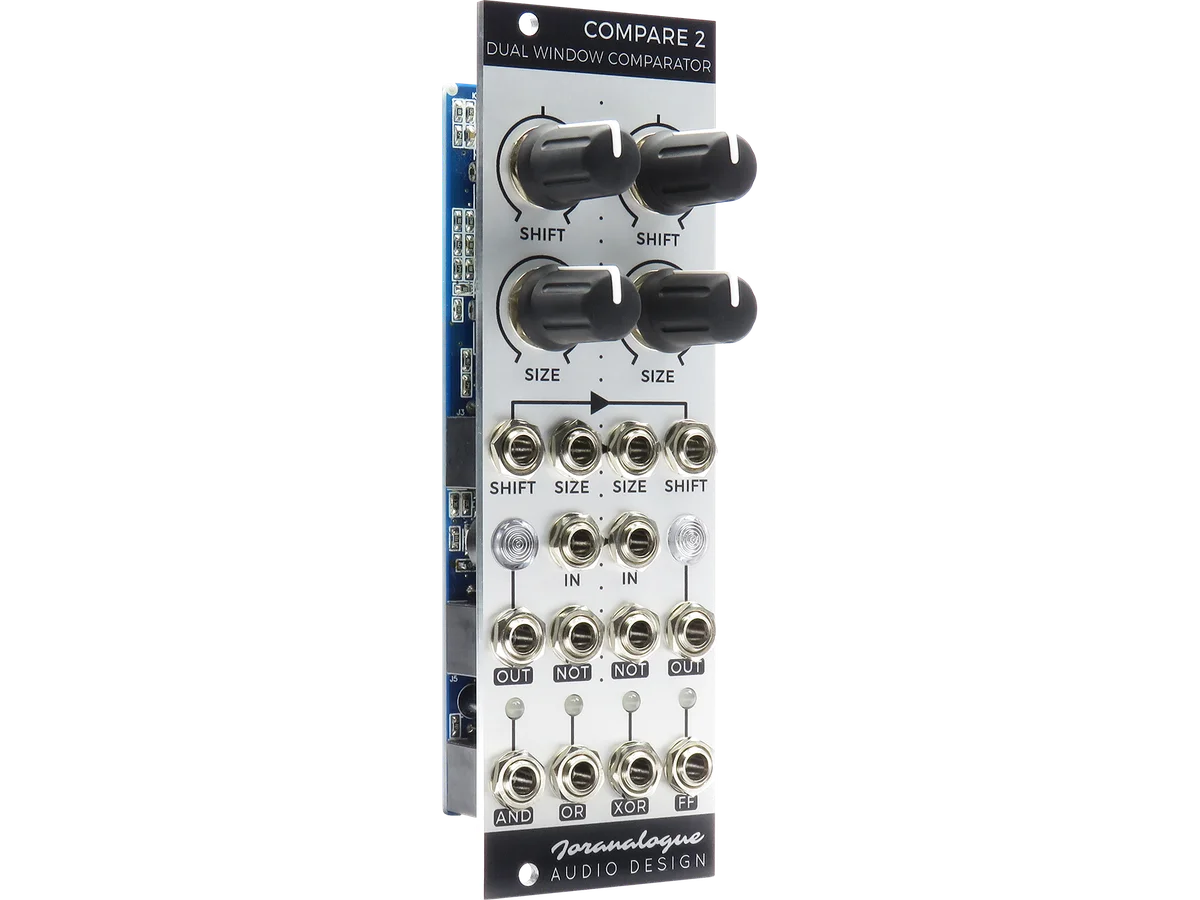

DUAL WINDOW COMPARATOR 8 HP | +12: 20 mA, −12: 15 mA | JORC2 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network .

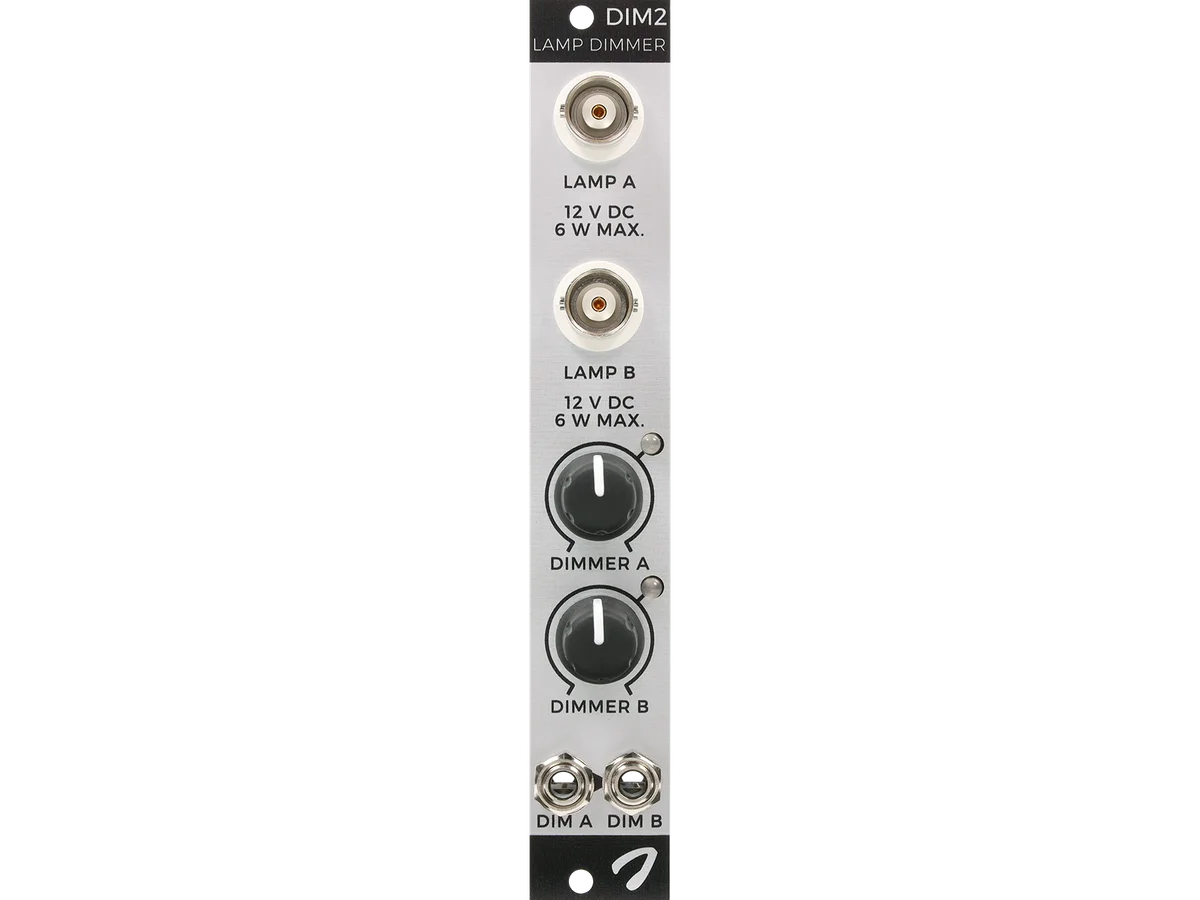

DUAL BNC LAMP AND DIMMER SET 4 HP | +12: 150 mA, −12: 5 mA | JORD2 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network .

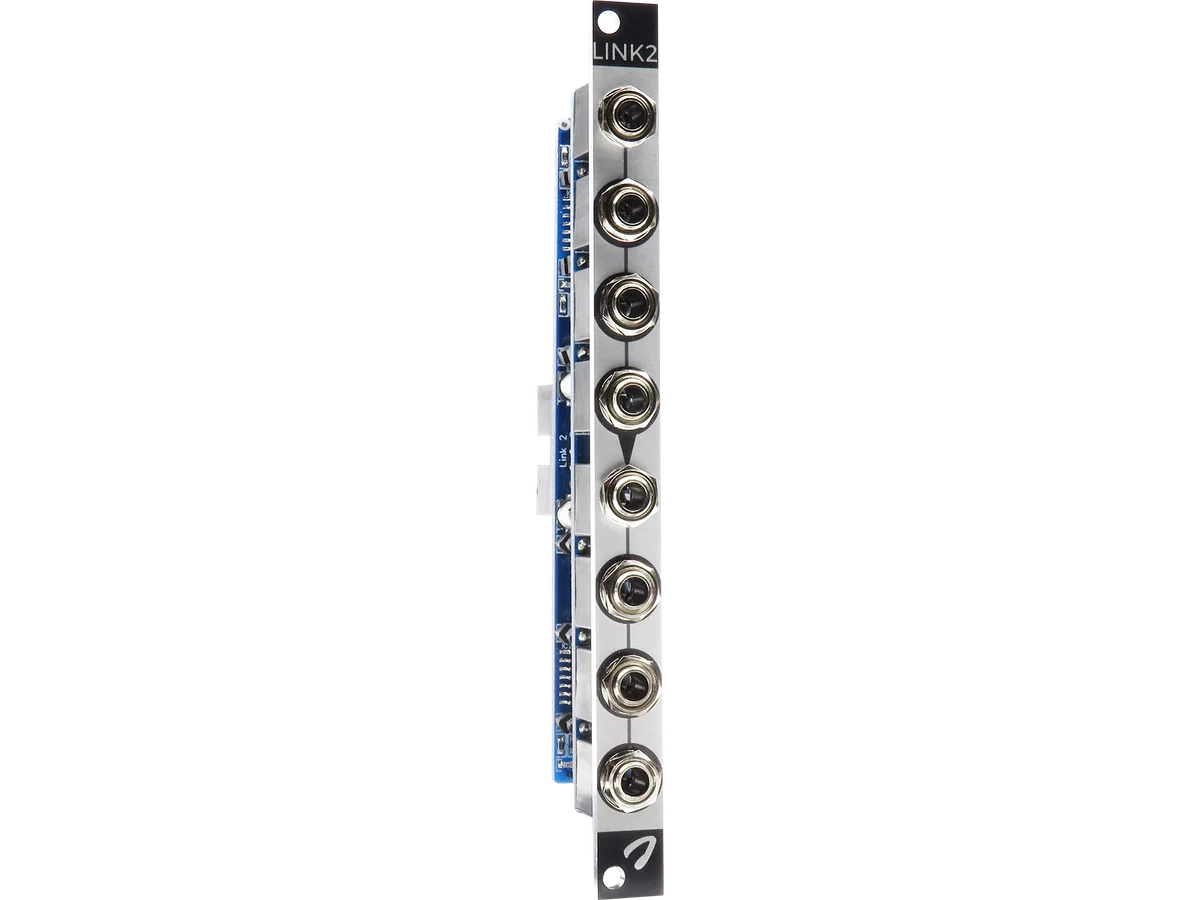

PRECISION BUFFERED MULTIPLES 2 HP | +12: 20 mA, −12: 20 mA | JORL2 ModularGrid Available exclusively through our authorised dealer network . 'Multiples' are the classic solution to a common problem in modular synthesisers: how to distribute one output signal to multiple inputs.

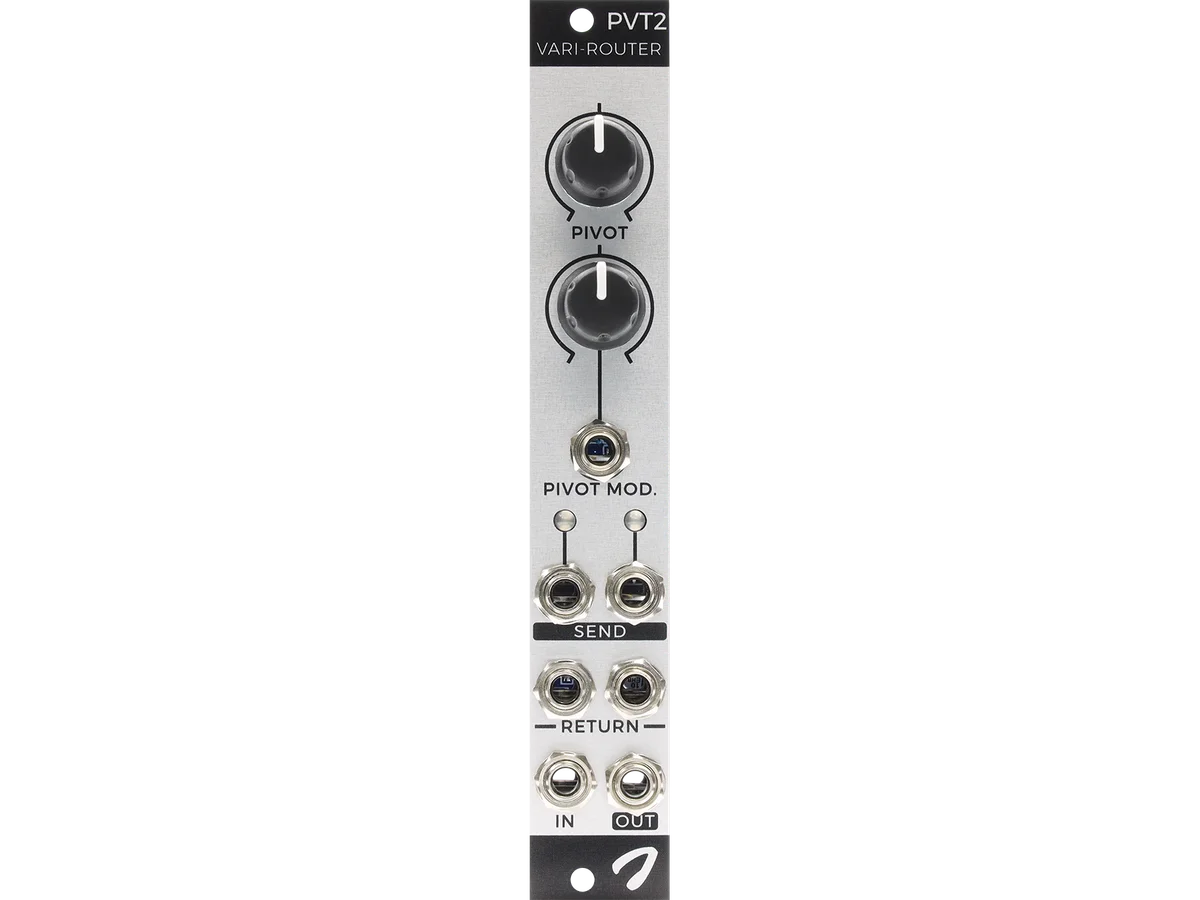

VOLTAGE CONTROLLED VARIABLE ROUTER 4 HP | +12: 60 mA, −12: 60 mA | JORP2 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network .

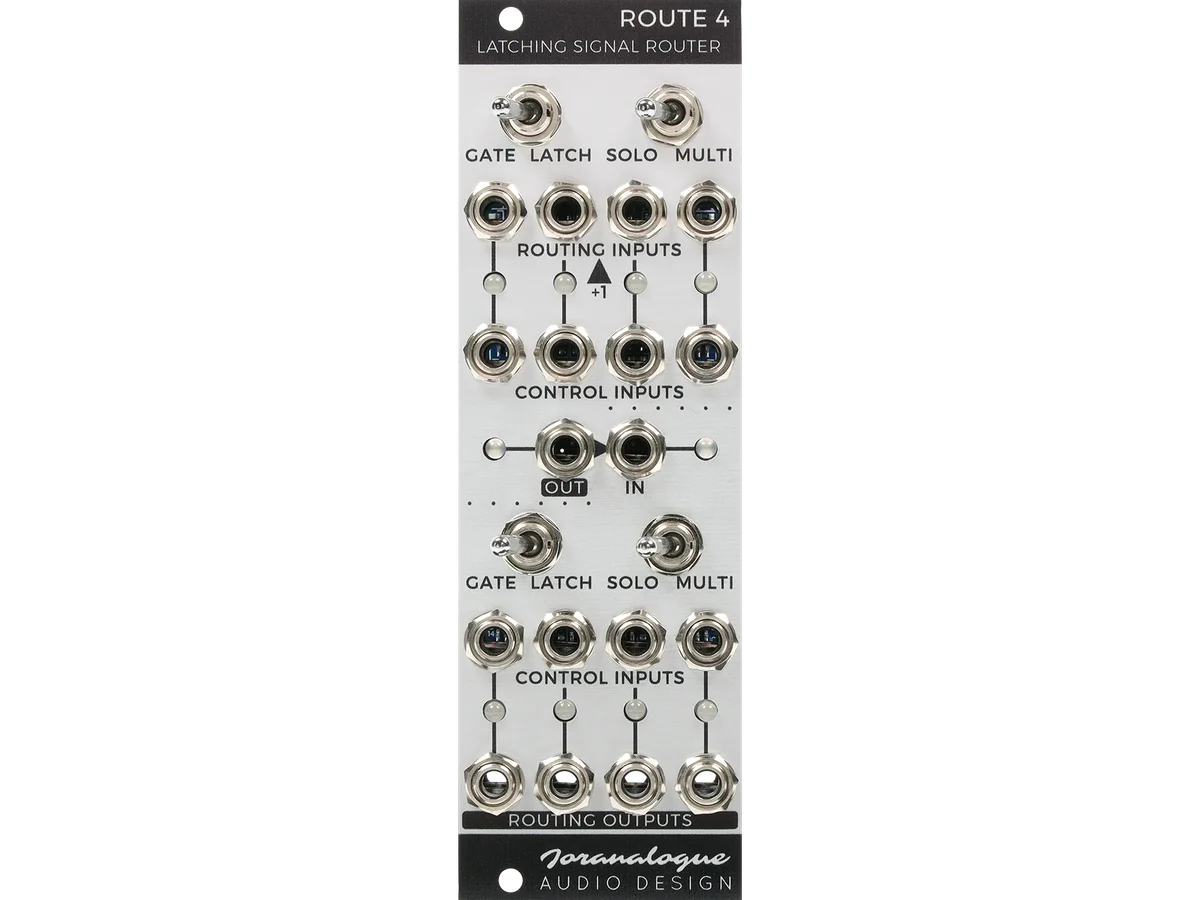

LATCHING SIGNAL ROUTER 8 HP | +12: 35 mA, −12: 20 mA | JORR4 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network . Flexible Eurorack signal paths under gate or trigger control: that is the basic principle behind Route 4.

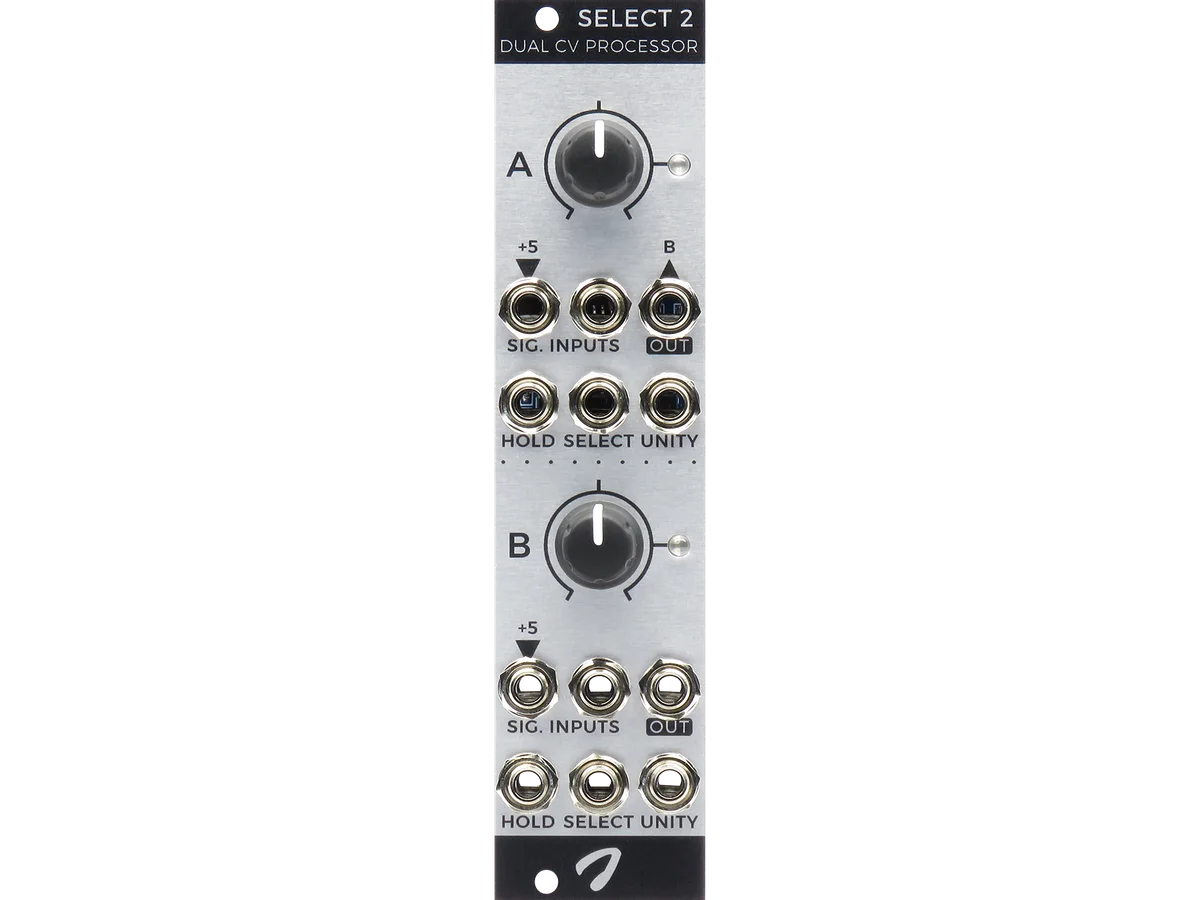

A 'Swiss Army knife' for your modular system, Select 2 provides two highly accurate gate-controlled voltage processors in 6 HP. These allow you to create, switch, mute, hold, invert, attenuate, offset, add/mix and subtract voltages, from slow control voltages (CV) up to audio frequencies.

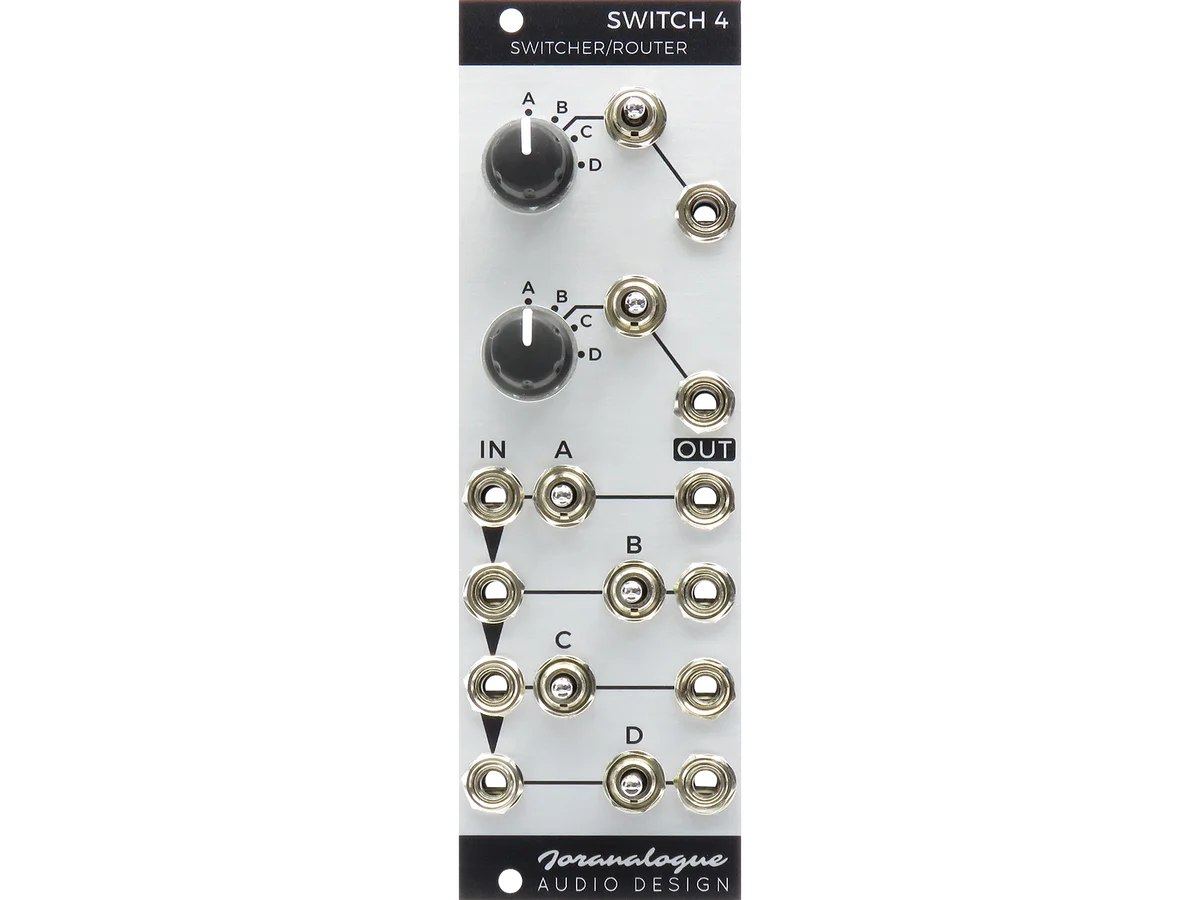

Designed with and for performing artists, Switch 4 delivers a hands-on signal switching and routing solution for your Eurorack modular synthesiser.

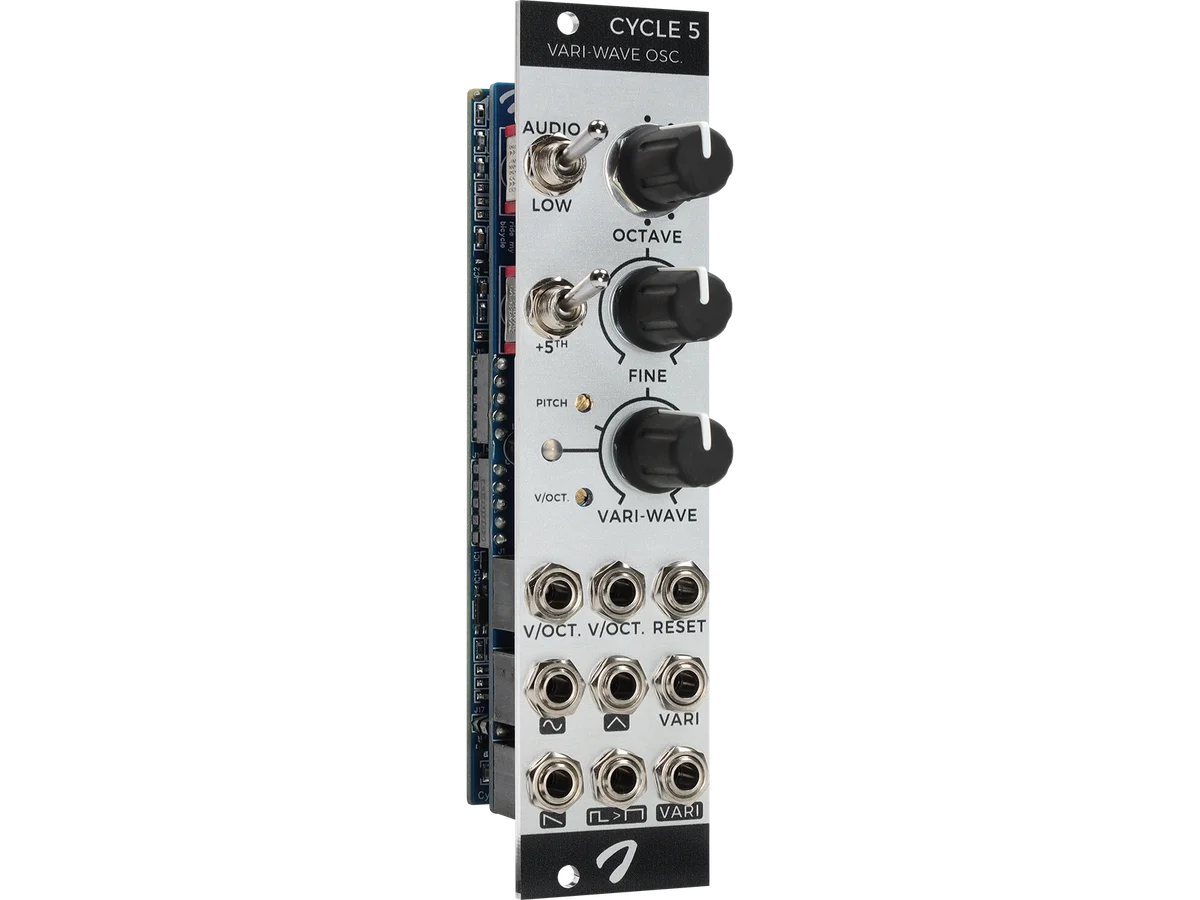

A small Eurorack oscillator that packs a punch: that’s the best way to summarise Cycle 5.

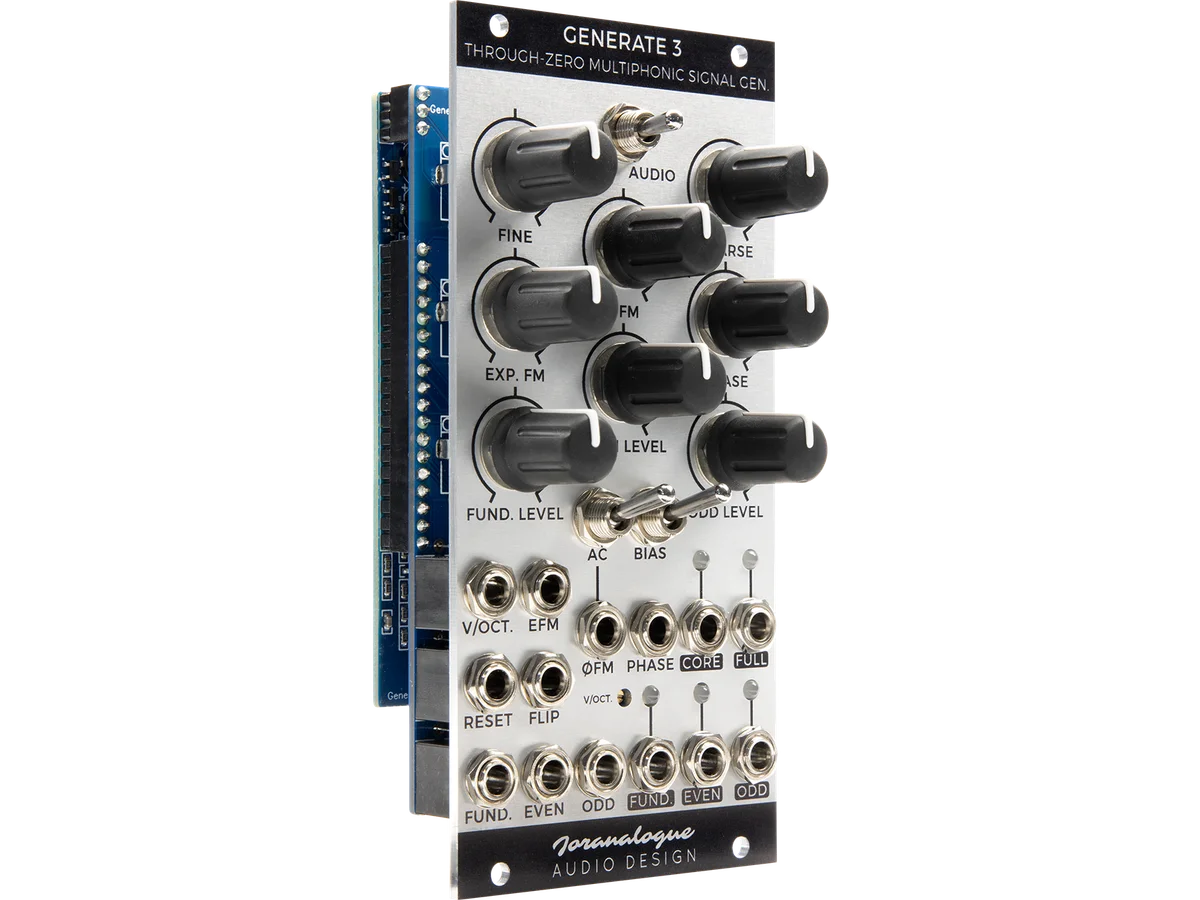

With Generate 3, it is now possible to create a signal and control all its parameters (frequency, phase, amplitude and timbre) by through-zero modulation within a single 12 HP wide module.

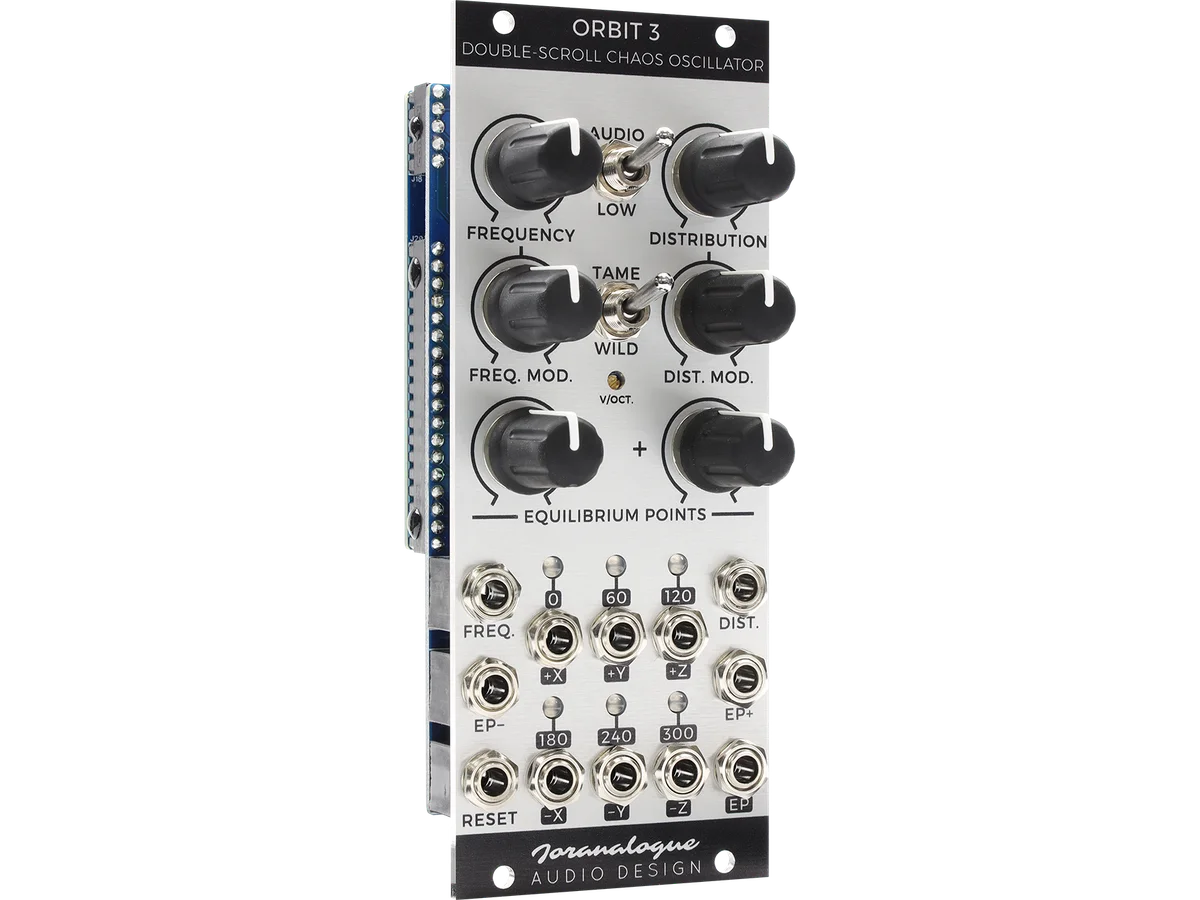

Orbit 3 is a double-scroll chaos oscillator: it incorporates a modified electronic analogue of the classic double-scroll attractor, for modulation and audio use.

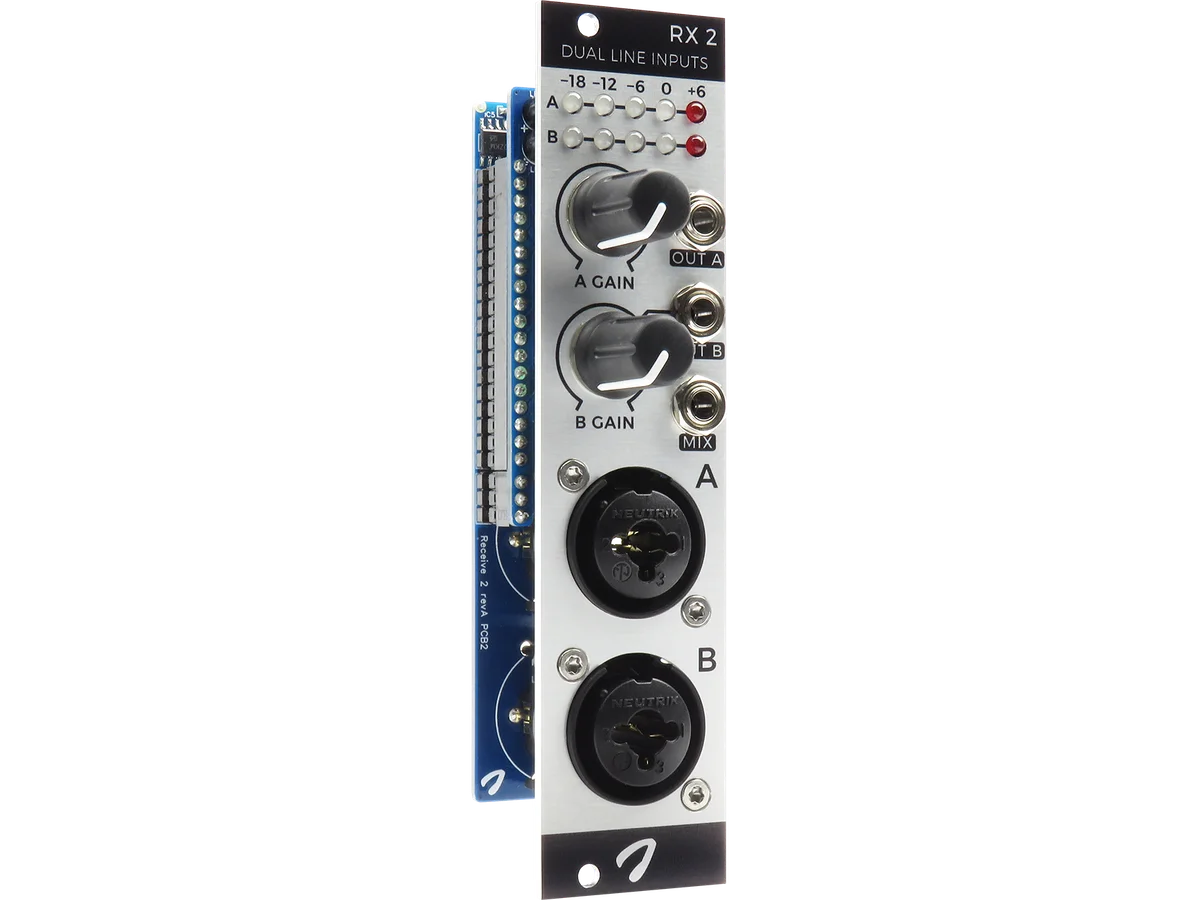

DUAL BALANCED LINE INPUTS 6 HP | +12: 35 mA, −12: 35 mA | JORR2 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network .

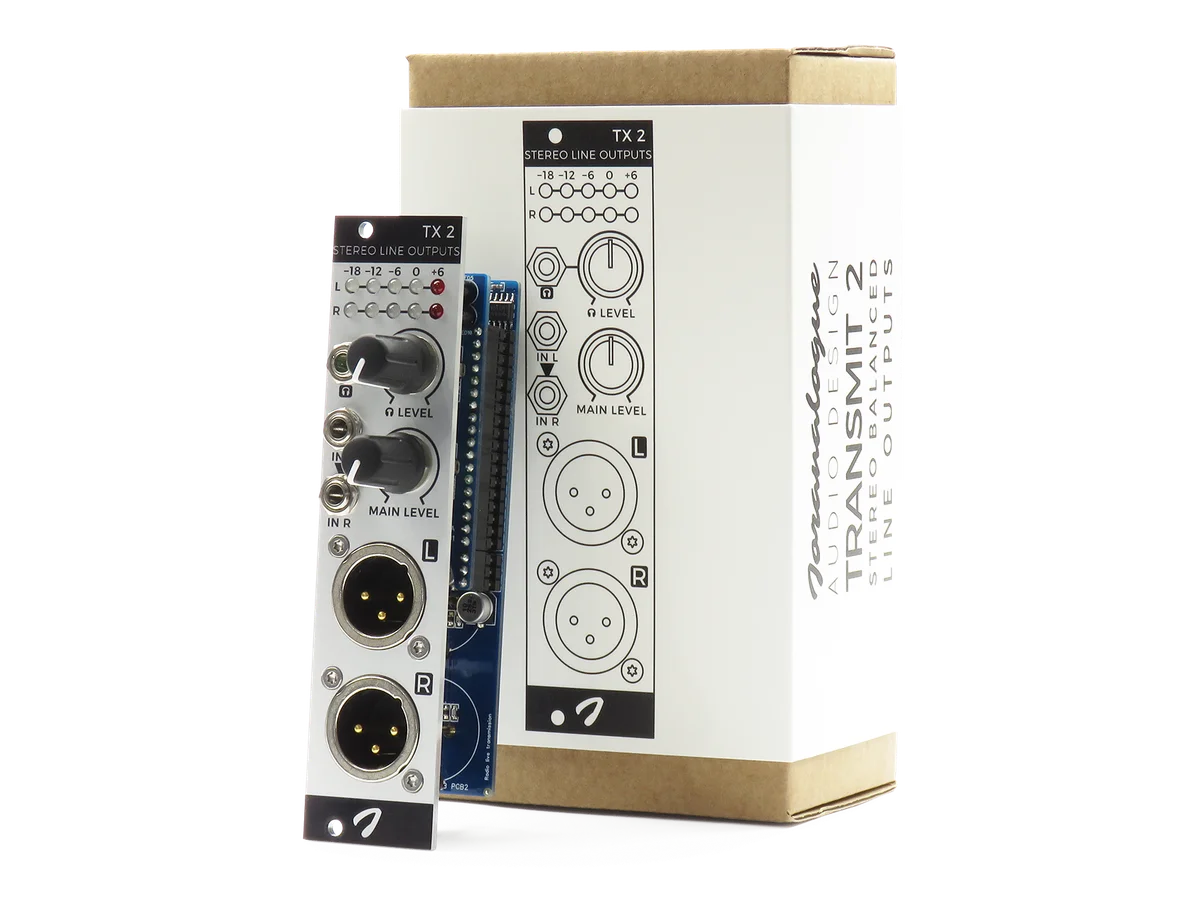

STEREO BALANCED LINE OUTPUTS 6 HP | +12: 100 mA, −12: 100 mA | JORT2 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network .

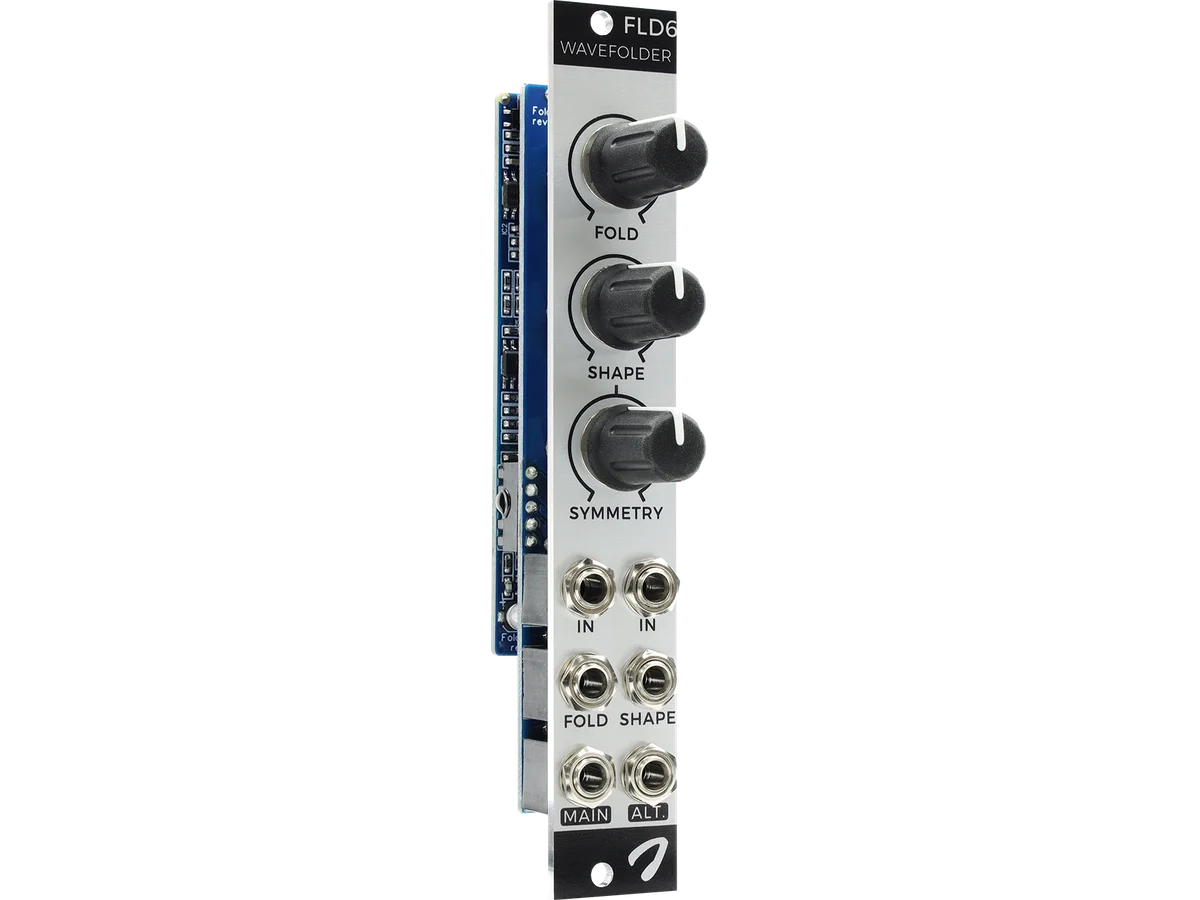

MULTI-TOPOLOGY WAVEFOLDER 4 HP | +12: 40 mA, −12: 40 mA | JORF6 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network . Often considered to be the opposite of filters within a modular system, wavefolders are designed to fold a signal over itself multiple times.

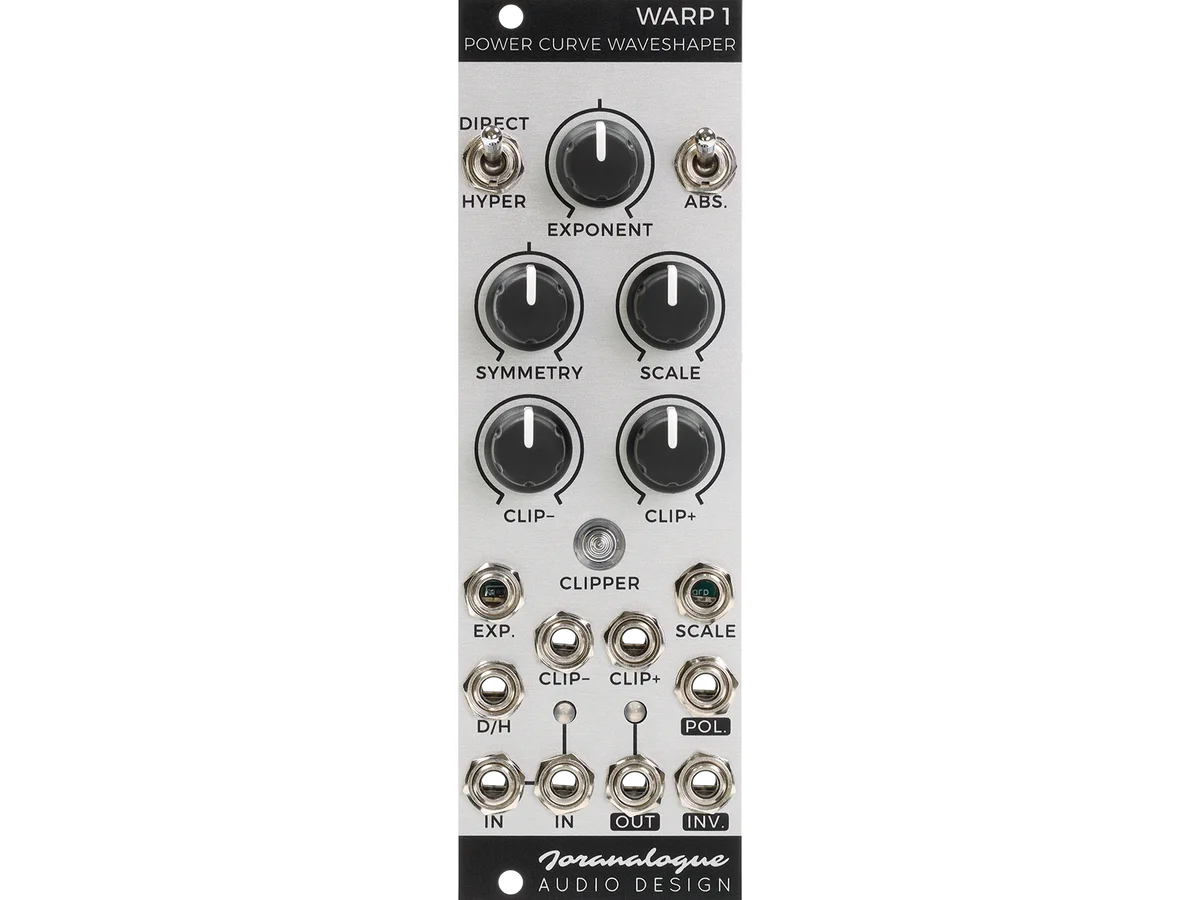

POWER CURVE WAVESHAPER 8 HP | +12: 65 mA, −12: 60 mA | JORW1 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network . Warp 1 is a new breed of analogue waveshaper.

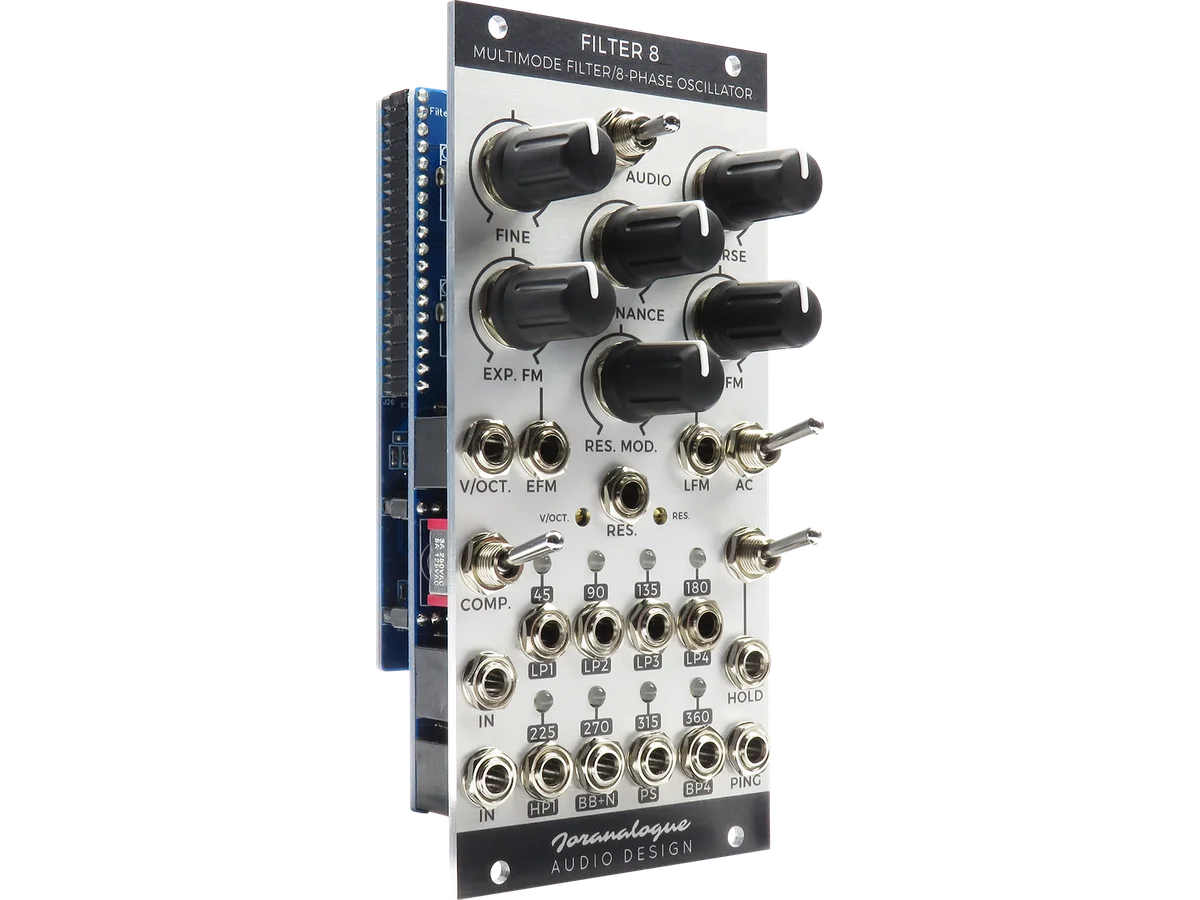

Representing the cutting edge in modular analogue voltage controlled filter (VCF) design, Filter 8 offers more possibilities and higher fidelity in 12 HP than ever before.

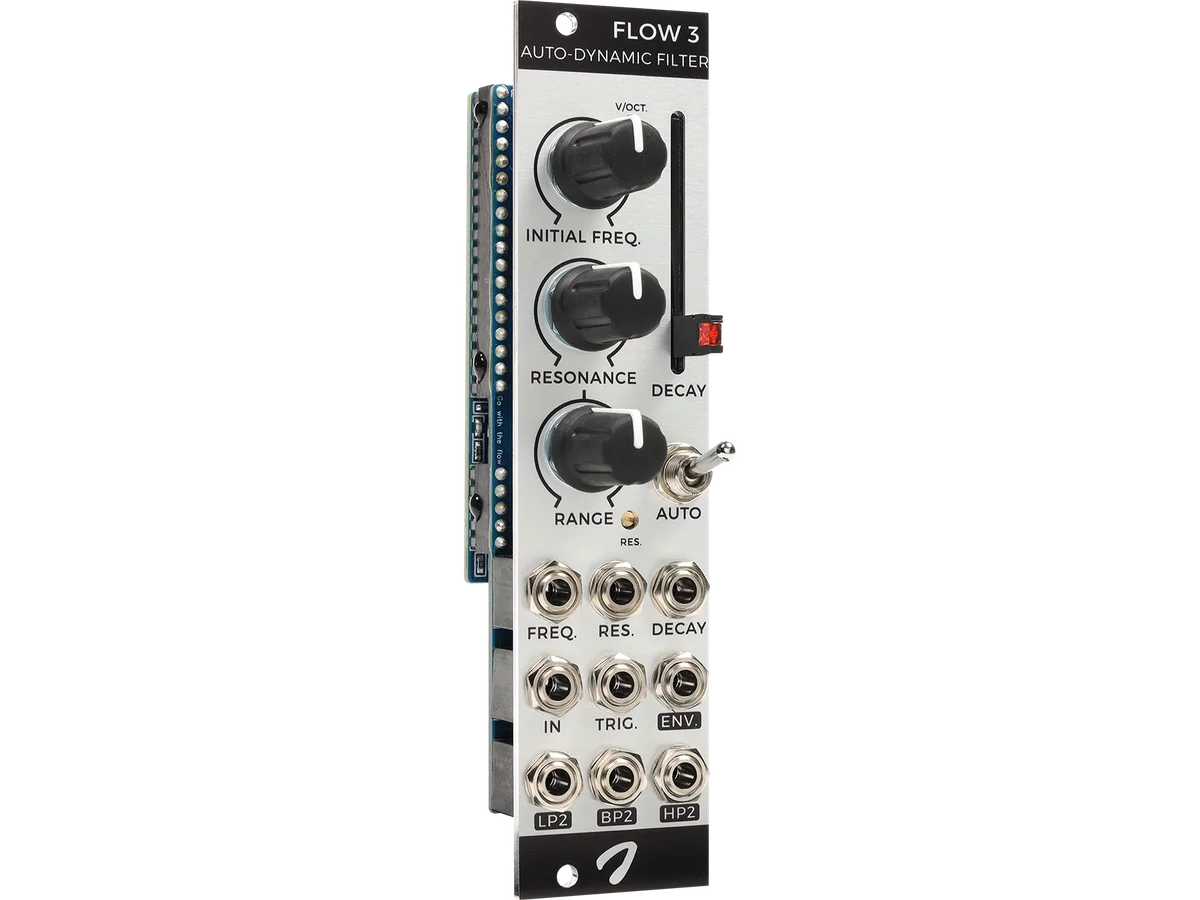

AUTO-DYNAMIC FILTER 6 HP | +12: 45 mA, −12: 45 mA | JORF3 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network . Flow 3 is a filter that sounds bigger than it looks.

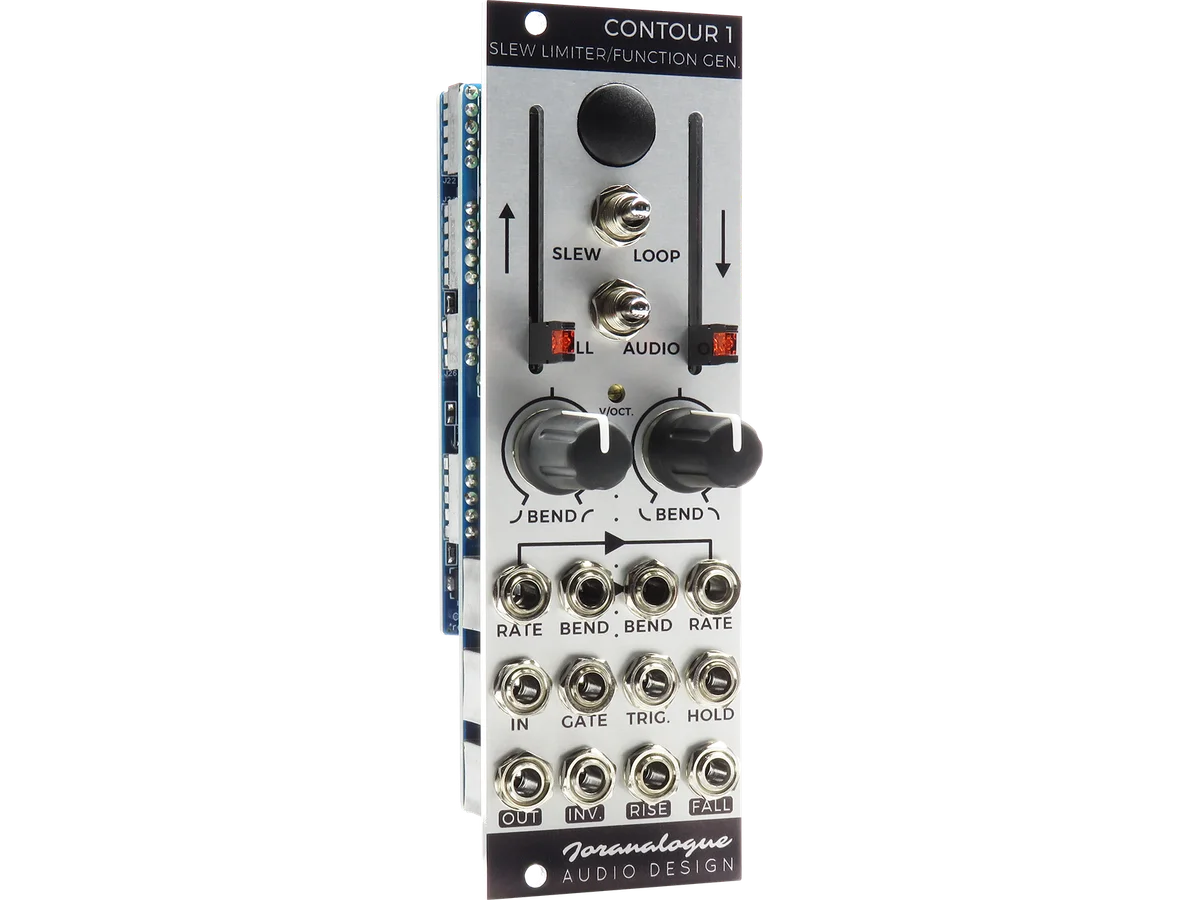

SLEW LIMITER/FUNCTION GENERATOR 8 HP | +12: 90 mA, −12: 85 mA | JORC1 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network . For decades, the voltage controlled slew limiter has been a staple of modular synthesisers.

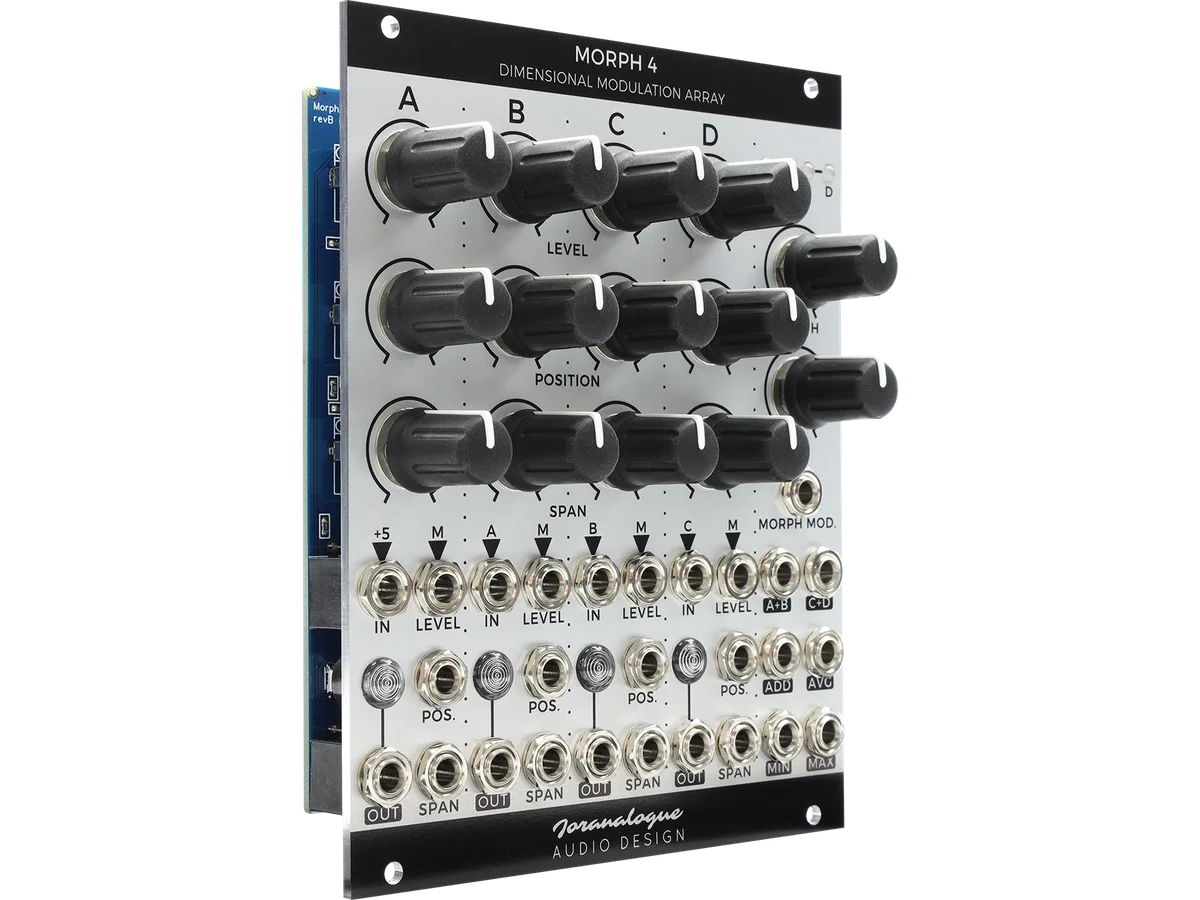

DIMENSIONAL MODULATION ARRAY 20 HP | +12: 110 mA, −12: 110 mA | JORM4 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network .

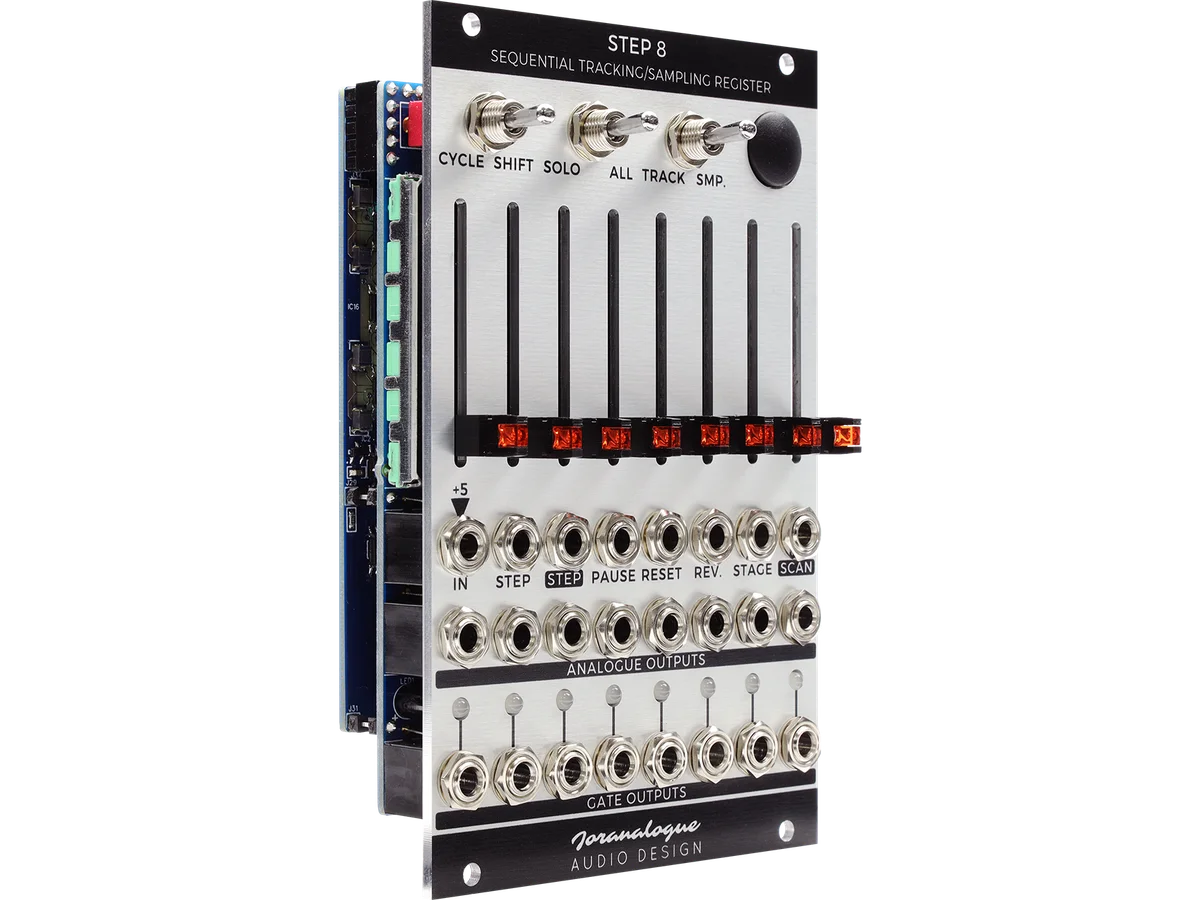

A sequential tracking/sampling register combining an analogue 1-to-8 signal switch with eight high-stability track/sample-and-hold stages, usable as a sequencer, shift register, or voltage-controlled switch.

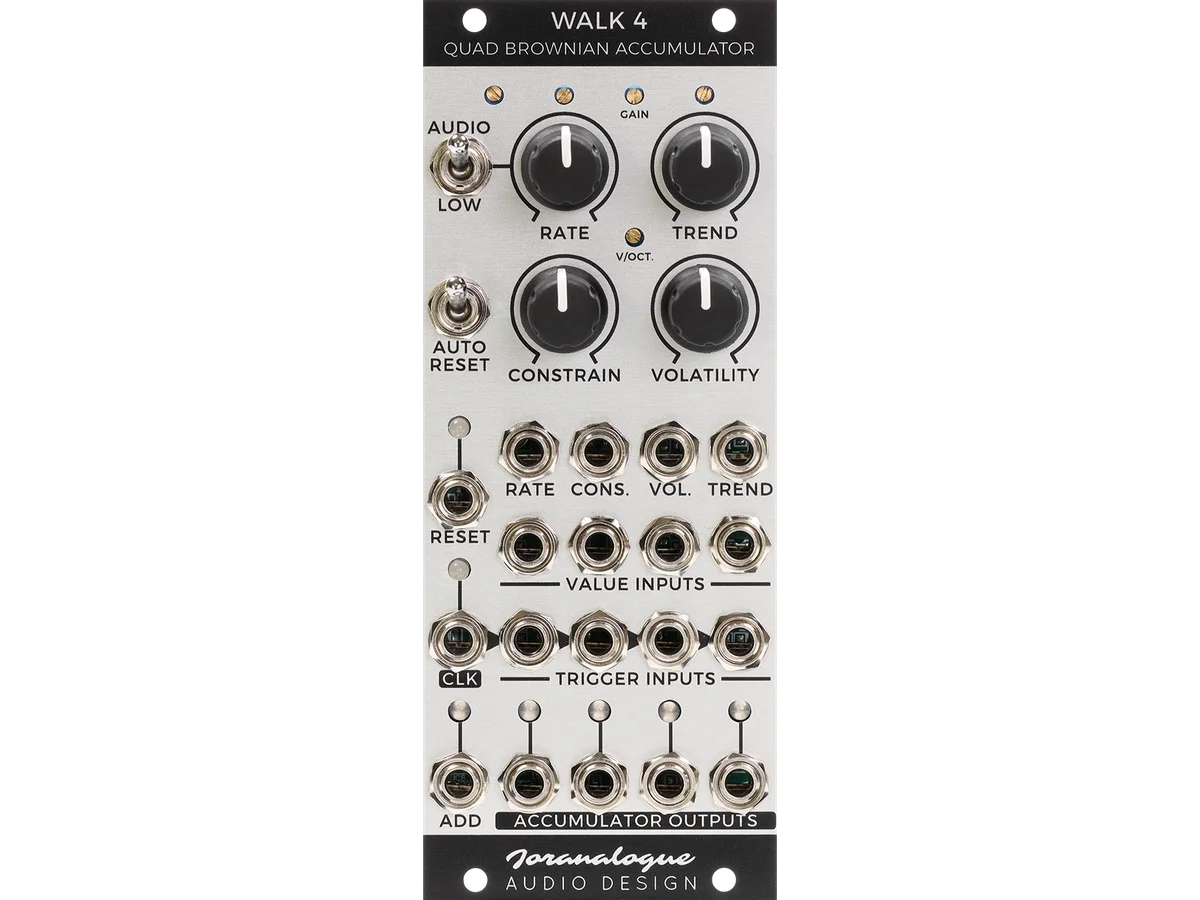

Walk 4 combines four analogue accumulators with a clock generator, four white noise sources and an auto reset system to create a 10 HP voltage stepping juggernaut.

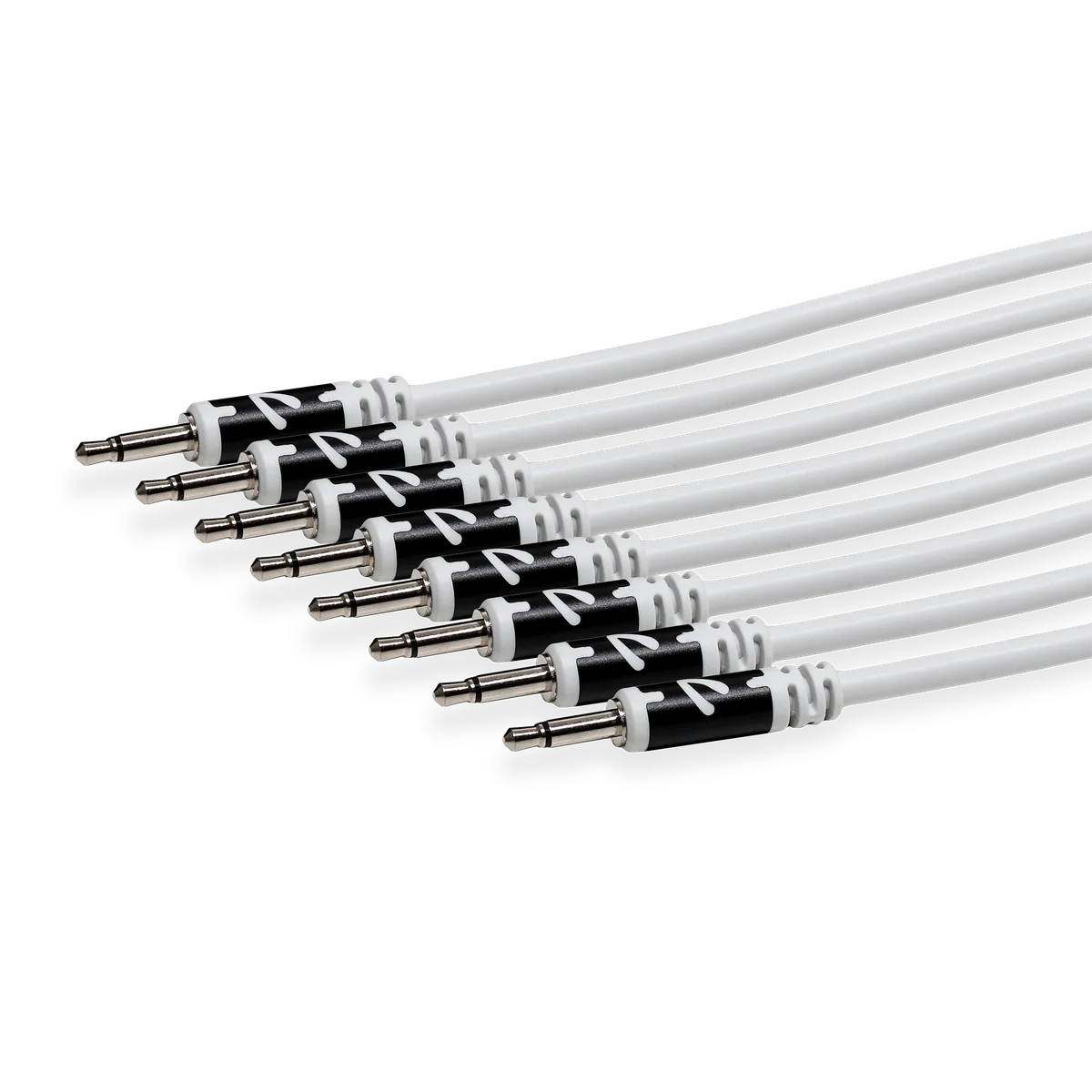

Patch is a series of top quality patch cables for the discerning modularist, available in black and white, and a variety of lengths.

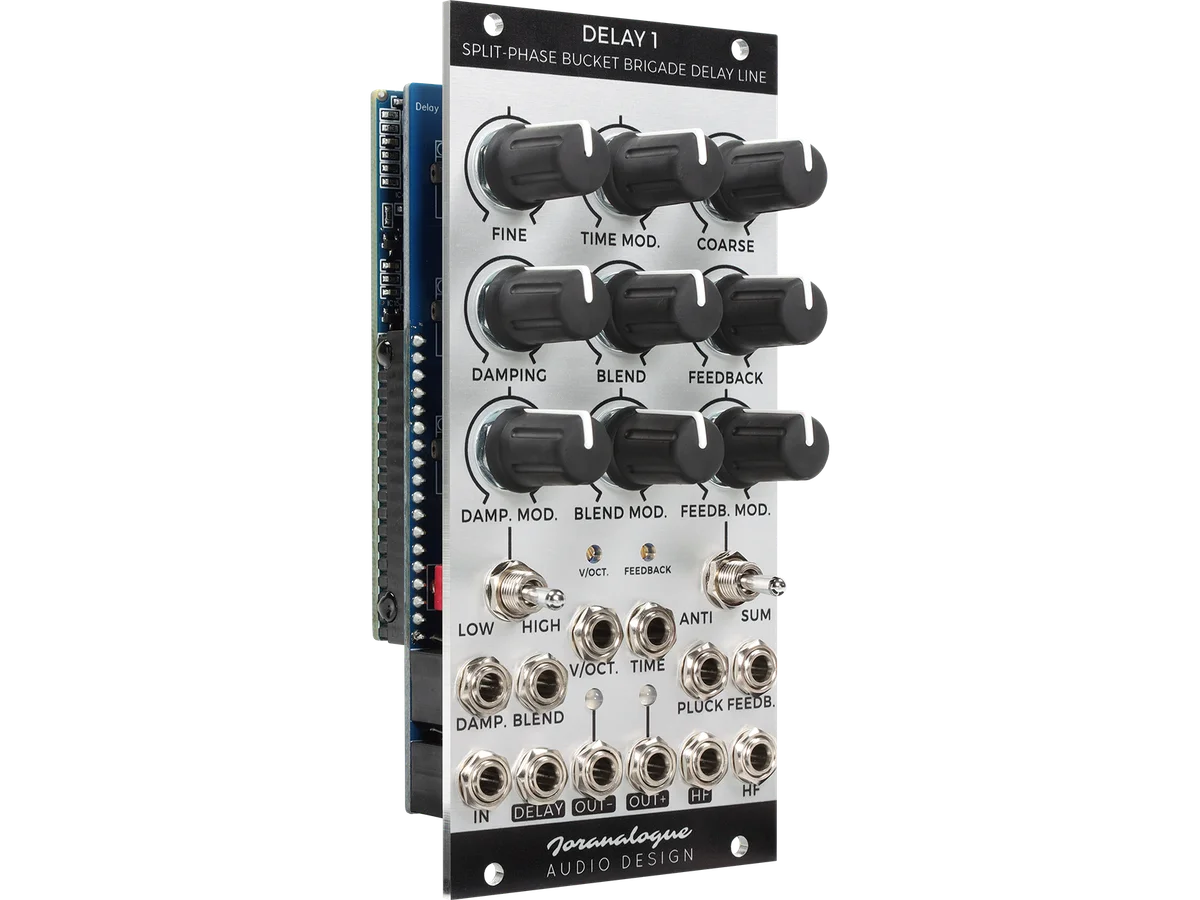

Delay 1 is a fully analogue BBD-based delay module with a multitude of features geared towards modern musical use.

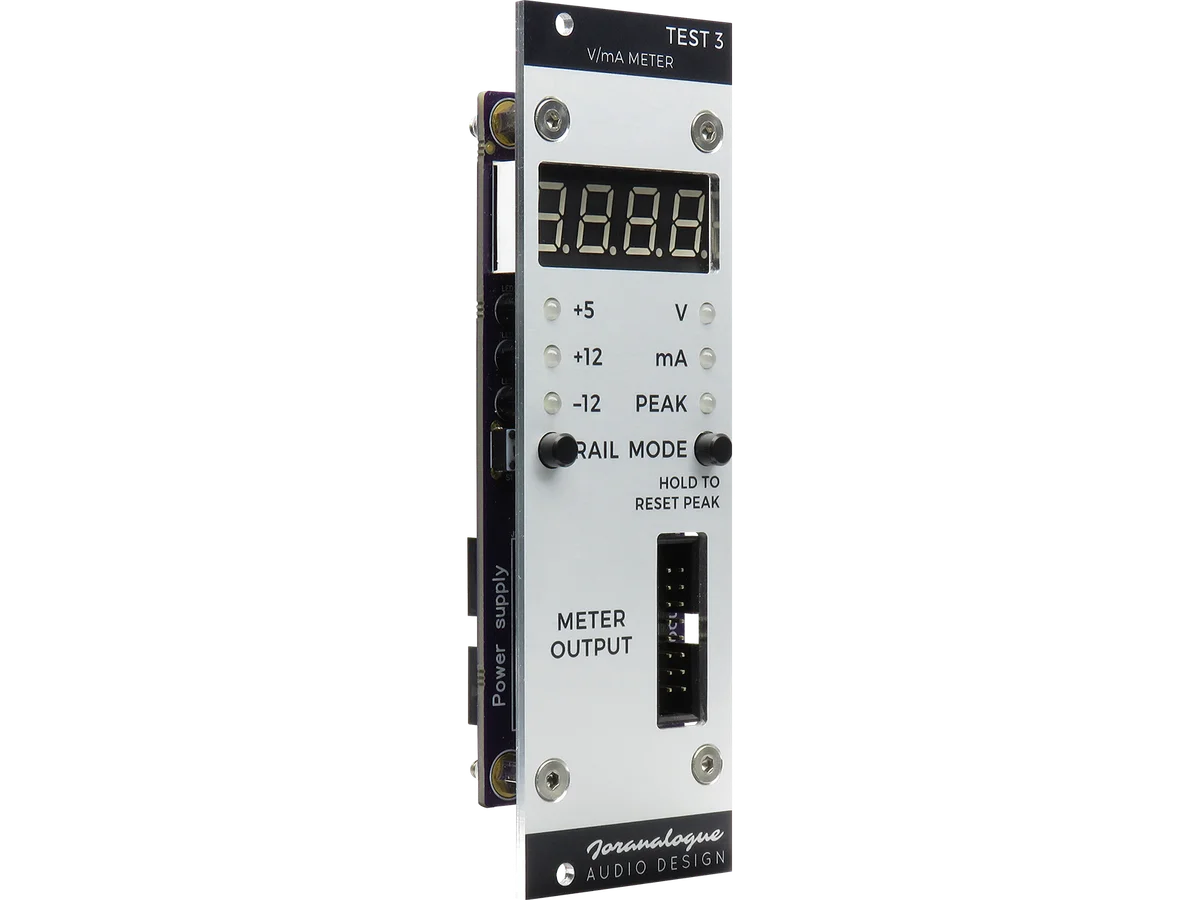

EURORACK V/mA METER DIY KIT 8 HP | +12: 35 mA | JORT3 User Manual (PDF) | Build Instructions (PDF) | ModularGrid | GitHub Available exclusively through our authorised dealer network . Test 3 is a purpose-designed tool for measuring voltages and currents in your Eurorack system.

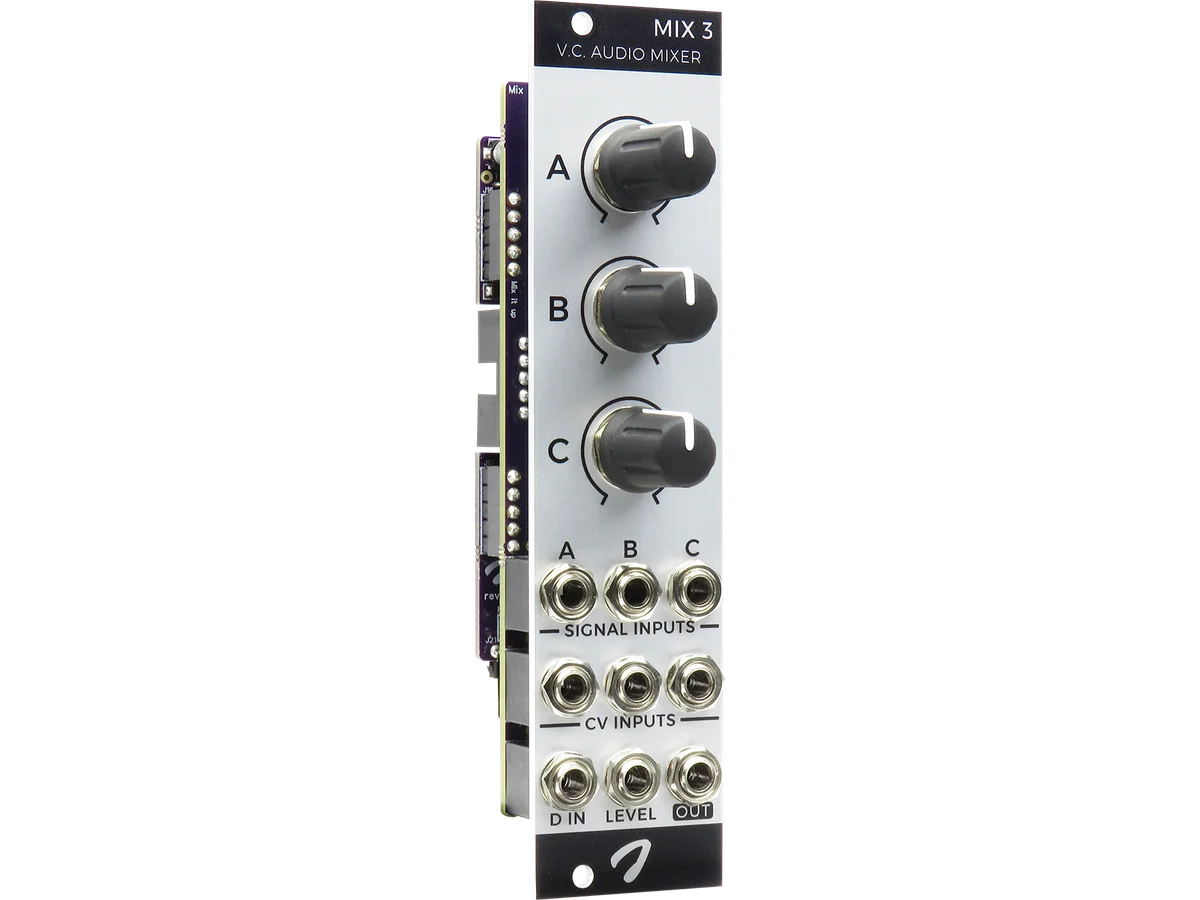

3+1 CHANNEL VOLTAGE CONTROLLED AUDIO MIXER 6 HP | +12: 30 mA, −12: 25 mA | JORM3 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network .

QUADRATURE SPECTRAL COMPUTER 20 HP | +12: 200 mA, −12: 200 mA | JORC4 User Manual (PDF) | ModularGrid Available exclusively through our authorised dealer network .

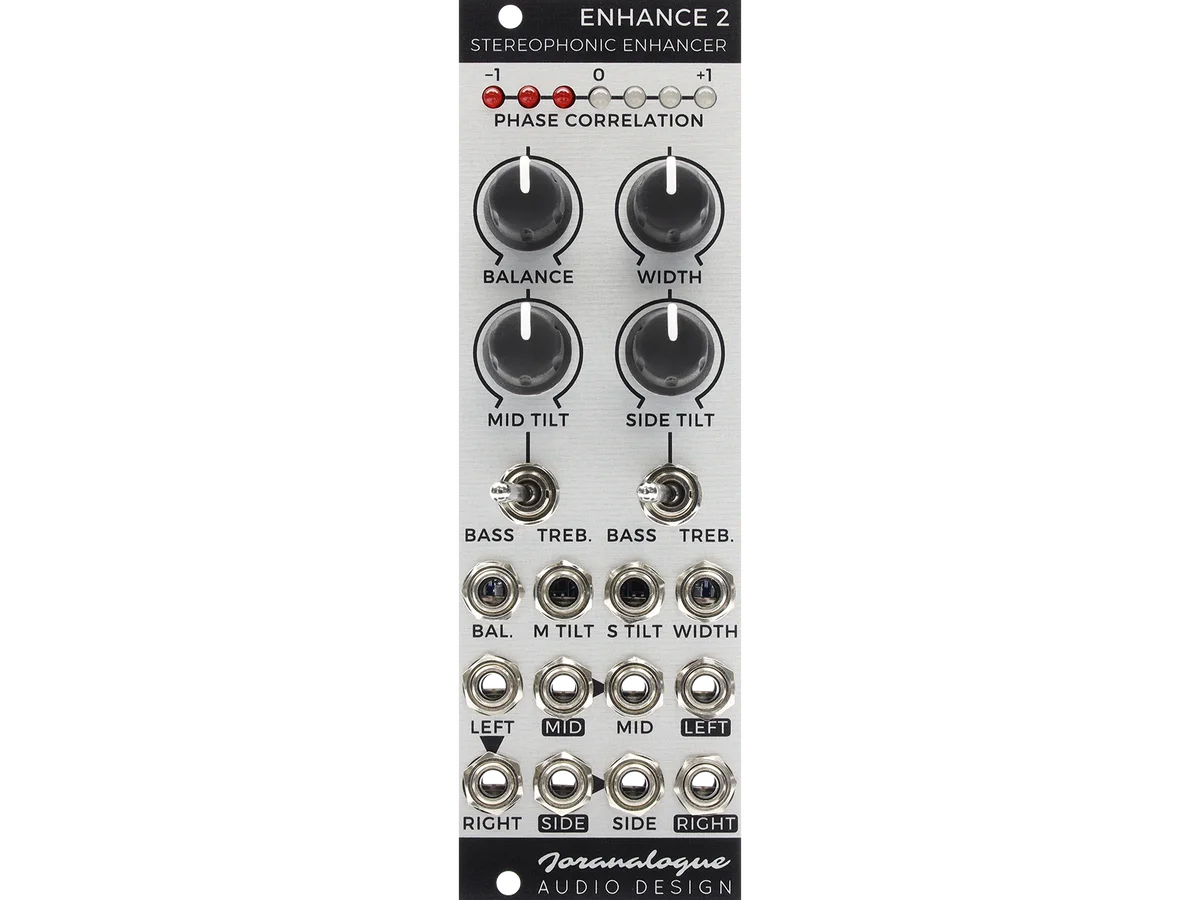

Enhance 2 is a convenient yet high-fidelity tool for stereo enhancement. It can be used to adjust balance, width and spectral content, while also opening up a world of mid/side processing, all under voltage control and in just 8 HP.
